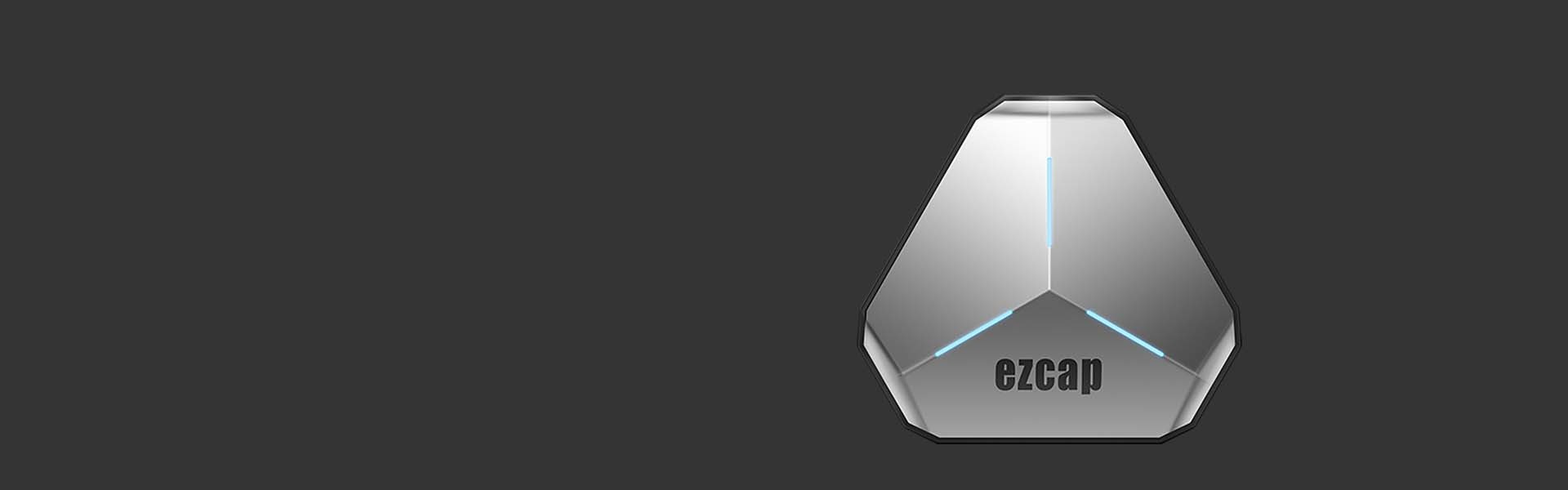

ezcap368 GameDock Extreme Duo
| Features | HDMI/DP input, HDMI output and recording up to 4K60/1440P144/1080P240 resolution. Support PD charge for USB-C upstream device Support VRR and HDR. Support audio mix with video. With extra ethernet and USB 3.0 ports. UVC solution, no driver installation |
| Specifications |
Interface: USB 3.2 Gen 1 Video Input: HDMI ® 2.0 enabled, and USB-C DP Alt 1.4, supports 4K60. Video Output: HDMI 2.0 Audio Input: HDMI 2.0, 3.5mm Line In (TRS 3-pole), 3.5mm headset microphone input (CTIA 4-pole) Audio Output (Pass-Through): HDMI 2.0, 3.5mm headset earphone output (CTIA 4-pole) Max. HDR Pass-Through Resolution: 2160p60, 1440p144/120, 1080p240 Max. VRR Pass-Through Resolution: 3840x 2160 – VRR (48-60 Hz), 1920 x 1080 – VRR (48-120 Hz). (Note: YCbCr420 VRR is not supported. Such as XBOX X1, please tick Allow YCC 4:2:2 settings to allow VRR) Max Record Resolution: 3840 x 2160 - 60fps/MJPG, 30fps/NV12/I420. 2560 x 1440 - 144fps/120fps/MJPG，60fps/NV12/I420，50fps/YUY2 2560 x 1080 - 60fps/NV12/I420/YUY2/MJPG. 1920 x 1080 -240fps/MJPG ,120fps/NV12/I420，60fps//YUY2/RGB24/P10 1280 x 720 - 60fps/NV12/I420/YUY2/RGB24/MJPG. PD: Power Delivery 3.0 Ethernet: 10/100/1000 Mbps USB-A 3.0 x2: data transfer at speeds up to 5Gb/s |
| System Requirements |
Windows 10 x64 / 11 x64，USB 3.2 Gen 1 Port x1 Desktop: Intel Core i5-6XXX or above, NVIDIA GeForce GTX 1060 or above. Laptop: Intel Core i7-7700HQ or above, NVIDIA GeForce GTX1050 Ti or above. 8 GB RAM recommended.
macOS 11 / 12, USB 3.2 Gen 1 Port x1 |
| Package Contents |
ezcap368 GameDock Extreme Duo game capture card, USB Cable, Manual. |
| Dimensions | 151 x 137 x 40 mm |
* The terms HDMI, HDMI High-Definition Multimedia Interface, HDMI trade dress and the HDMI Logos are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.
-
Features HDMI/DP input, HDMI output and recording up to 4K60/1440P144/1080P240 resolution.
Support PD charge for USB-C upstream device
Support VRR and HDR.
Support audio mix with video.
With extra ethernet and USB 3.0 ports.
UVC solution, no driver installationSpecifications Interface: USB 3.2 Gen 1
Video Input: HDMI ® 2.0 enabled, and USB-C DP Alt 1.4, supports 4K60.
Video Output: HDMI 2.0
Audio Input: HDMI 2.0, 3.5mm Line In (TRS 3-pole), 3.5mm headset microphone input (CTIA 4-pole)
Audio Output (Pass-Through): HDMI 2.0, 3.5mm headset earphone output (CTIA 4-pole)
Max. HDR Pass-Through Resolution: 2160p60, 1440p144/120, 1080p240
Max. VRR Pass-Through Resolution: 3840x 2160 – VRR (48-60 Hz), 1920 x 1080 – VRR (48-120 Hz). (Note: YCbCr420 VRR is not supported. Such as XBOX X1, please tick Allow YCC 4:2:2 settings to allow VRR)
Max Record Resolution:
3840 x 2160 - 60fps/MJPG, 30fps/NV12/I420.
2560 x 1440 - 144fps/120fps/MJPG，60fps/NV12/I420，50fps/YUY2
2560 x 1080 - 60fps/NV12/I420/YUY2/MJPG.
1920 x 1080 -240fps/MJPG ,120fps/NV12/I420，60fps//YUY2/RGB24/P10
1280 x 720 - 60fps/NV12/I420/YUY2/RGB24/MJPG.
PD: Power Delivery 3.0
Ethernet: 10/100/1000 Mbps
USB-A 3.0 x2: data transfer at speeds up to 5Gb/s
System Requirements Windows 10 x64 / 11 x64，USB 3.2 Gen 1 Port x1
Desktop: Intel Core i5-6XXX or above, NVIDIA GeForce GTX 1060 or above.
Laptop: Intel Core i7-7700HQ or above, NVIDIA GeForce GTX1050 Ti or above.
8 GB RAM recommended.
macOS 11 / 12, USB 3.2 Gen 1 Port x1
Apple M1 or Intel i7 quad-core or above, Radeon Pro 555 with 2 GB of VRAM, 16 GB of 2400 MHz DDR4 memory.Package Contents ezcap368 GameDock Extreme Duo game capture card, USB Cable, Manual.
Dimensions 151 x 137 x 40 mm * The terms HDMI, HDMI High-Definition Multimedia Interface, HDMI trade dress and the HDMI Logos are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.
